- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1976
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 142135
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Original prospekt in 1976.
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

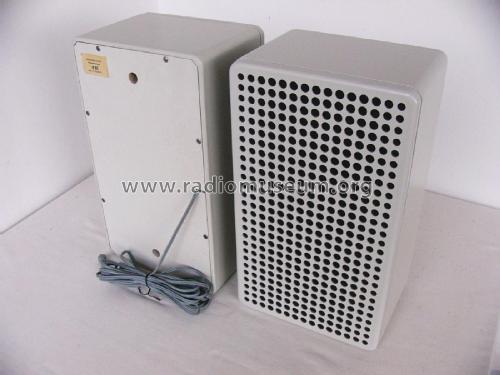

- Model: LB 352 - Wega, Württembergische Radio-
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 235 x 400 x 170 mm / 9.3 x 15.7 x 6.7 inch
- Notes
- 3-Wege-HiFi-Box mit einer Belastbarkeit von 50 W Sinus; Impedanz: 4-8 Ohm, Übertragungsbereich: 35-25000Hz.
Bestückung: 1 Tieftöner 180 mm Ø, 1 Kalottenmitteltöner 37 mm Ø und 1 Kalotten-Hochtöner 25 mm Ø. Frequenzweiche: Übergänge bei 850/5000 Hz.
Regal- oder Wandlautsprecher im Holzgehäuse; Weiss oder Metallic; Blende: Anthrazit oder Weiss.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
