• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116941

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• DF97 DF97 DK92 DF97 DF97 DM70 DAF96 DL94

• Number of Transistors

• Semiconductors
• OA172 OA172

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 1,5 or 2 & 4,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mars B UKW 1092 - Wega, Württembergische Radio-

• Shape
• Tablemodel with Push Buttons.

• Notes

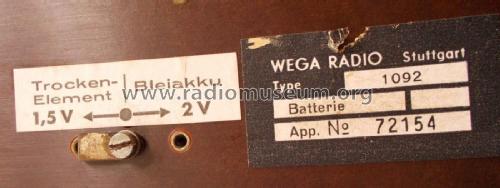

• Umschalter für Heizung 1,5 V (Trockenelement) und 2 V (Bleiakku) an der Rückseite. Nur für die Skalenbeleuchtung wird eine separate 4,5 V Batterie benötigt.

• Price in first year of sale
• 320.00 DM

• Mentioned in
• - - Manufacturers Literature (Prospekt "UKW Batterie Empfänger Wega Mars" 3-56)

• Literature/Schematics (1)

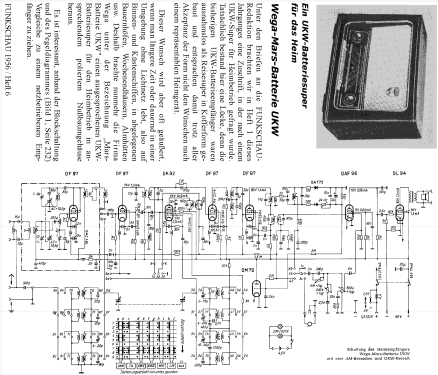

• -- Schematic

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
