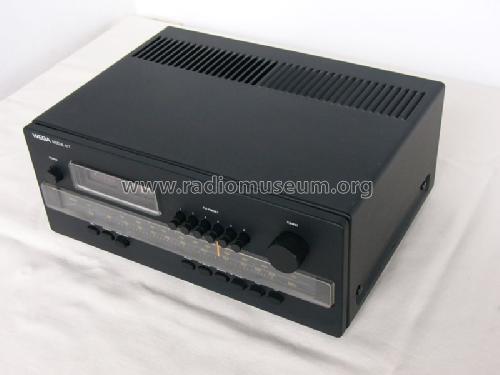

HiFi Tuner Modul 41 T
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1977/1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 221154
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
aus Original Prospekt
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 15 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: HiFi Tuner Modul 41 T - Wega, Württembergische Radio-
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 360 x 150 x 260 mm / 14.2 x 5.9 x 10.2 inch
- Notes
-
HiFi-Stereo-Tuner. Gehäusefarbe: schwarz oder hellgrau. Weitgehend baugleich mit Wega 3741-2. Es wurde nur die Optik überarbeitet, damit das Gerät zur damals neuen Modul 42-Serie von Wega passte.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Gerhard Wickern. See "Data change" for further contributors.
