- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1972–1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28795
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
großer Katalog Gebr.Weiler 1973/74

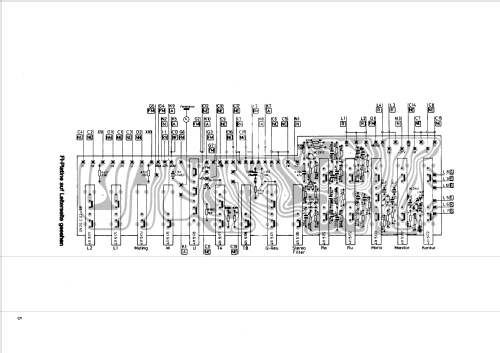

Q: Wega, Service-Unterlagen 6/72

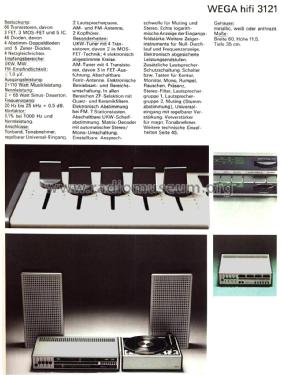

Q: Wega, Produkt-Katalog '73
Q: Wega, Produkt-Katalog 6/72
Mein Gerät mit der Serien-Nr.: 04049
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 66
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 19 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 130 W (180 W max.)
- from Radiomuseum.org

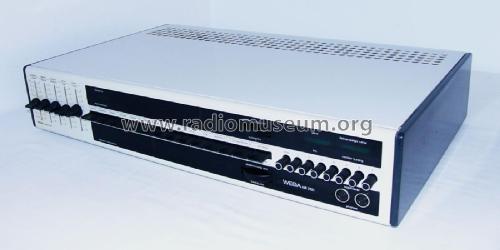

- Model: HiFi 3121 - Wega, Württembergische Radio-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 600 x 115 x 350 mm / 23.6 x 4.5 x 13.8 inch
- Notes
- ICs: 5.
HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 65 W (Sinus).
7 Stationstasten für UKW. 3 Ein- und 7 Ausgänge. Feldstärke- und Nullpunktanzeige mit 3 Instrumenten, Schieberegler für Lautstärke, Höhen, Tiefen, Balance und Präsenz.
Ausführung in Metallic oder Weiss.
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Price in first year of sale
- 1,980.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1972/1973
- Literature/Schematics (1)
- -- Schematic
