• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28444

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

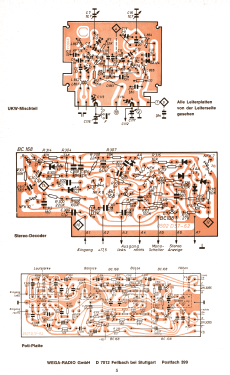

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: studio 3202 [Teak/Palisander/weiss] - Wega, Württembergische Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 720 x 190 x 330 mm / 28.3 x 7.5 x 13 inch

• Notes
• Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 10 W (Sinus).
  Phono-Chassis = Dual 1211 mit Keramiksystem CDS650.
  Gehäuse: Teak, Palisaner oder weiss. Siehe auch Variante in Nussbaum, natur.

• Net weight (2.2 lb = 1 kg)
• 14.4 kg / 31 lb 11.5 oz (31.718 lb)

• Price in first year of sale
• 818.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972
