• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28449

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

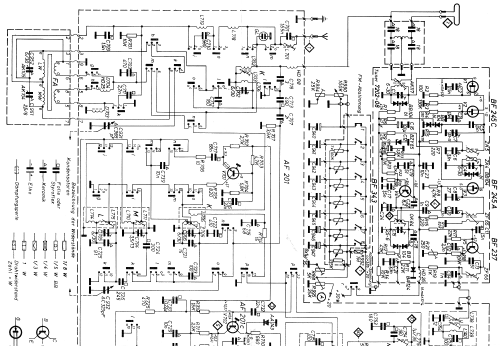

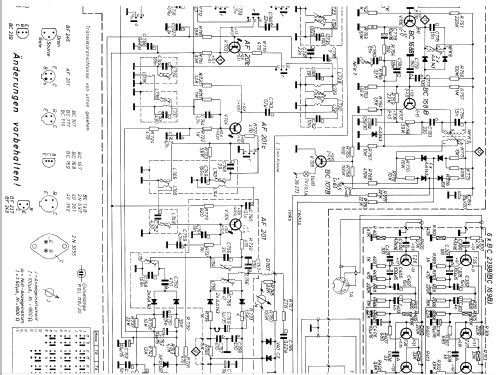

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 50

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     16 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

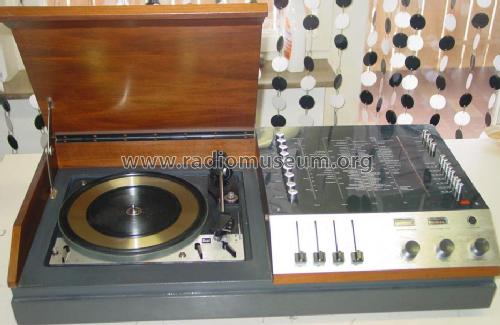

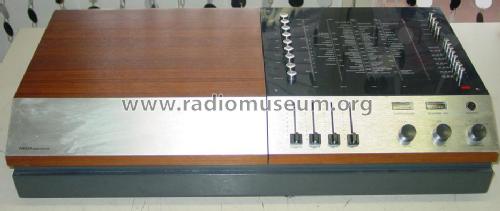

• Model: studio 3208 hifi [Nussbaum] - Wega, Württembergische Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 775 x 170 x 390 mm / 30.5 x 6.7 x 15.4 inch

• Notes
• HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 30 W (Sinus);
  Phono-Chassis = Dual 1218 mit Magnetsystem.
  Gehäuse: Nussbaum, natur. Siehe auch Variante in Teak, Palisander oder weiss.

• Net weight (2.2 lb = 1 kg)
• 18.5 kg / 40 lb 12 oz (40.749 lb)

• Price in first year of sale
• 1,798.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972
