studio 3210 Nussbaum
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1972–1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28787
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart

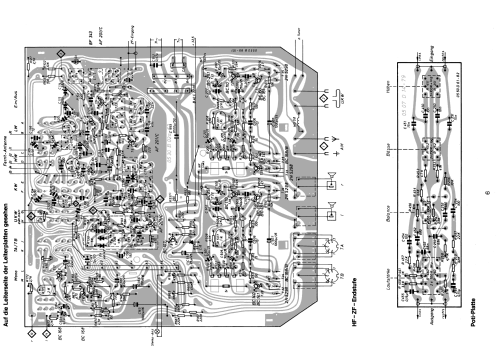

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 27
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: studio 3210 [Nussbaum] - Wega, Württembergische Radio-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 720 x 190 x 330 mm / 28.3 x 7.5 x 13 inch
- Notes
- Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 10 W (Sinus);
Phono-Chassis = Dual 1210 mit Kristallsystem CDS640.
- Net weight (2.2 lb = 1 kg)
- 14.4 kg / 31 lb 11.5 oz (31.718 lb)
- Price in first year of sale
- 798.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1972/1973
