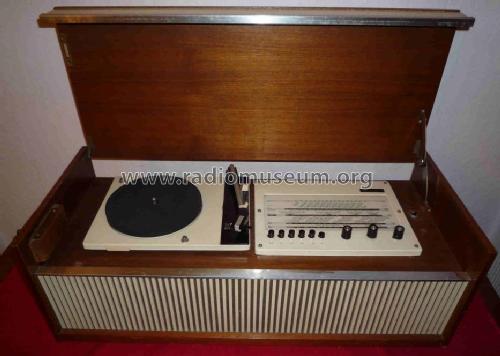

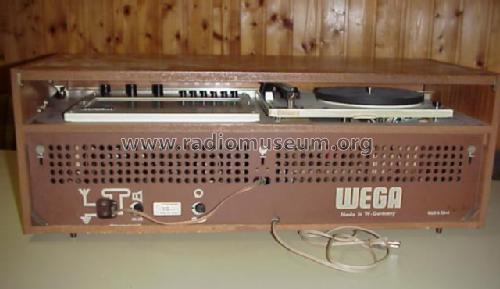

Wegaphon 530 PS= 400

• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1964–1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25911

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

• Picture
• Schematics

Previous Next

Previous Next

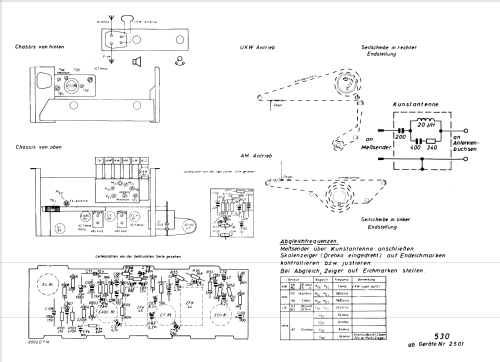

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EAM86 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Wegaphon 530 [PS= 400] - Wega, Württembergische Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 700 x 255 x 290 mm / 27.6 x 10 x 11.4 inch

• Notes
• Rundfunk-Chassis wie in Wegaphon 530, jedoch Phono-Chassis = Dual 400.

• Net weight (2.2 lb = 1 kg)
• 13.3 kg / 29 lb 4.7 oz (29.295 lb)

• Price in first year of sale
• 389.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965

• Mentioned in
• Taxliste Franzis Verlag

• Other Models

• Here you find 670 models, 596 with images and 392 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
