Wegavision 767EL-1
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1972
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 128884
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart

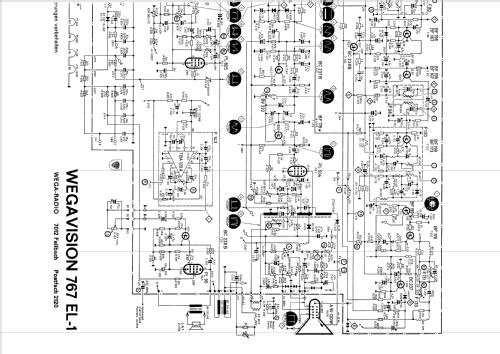

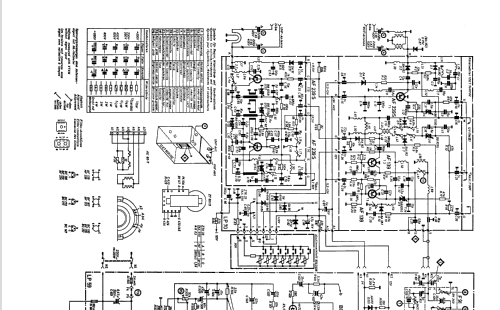

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 17
- Semiconductors
- AF239 AF139 AF139 AF239 AF239 BF198 or. BF167 BF198 or. BF167 BF199 or. BF173 BF199 BF178 BC237 BC238 BC308 BC237 BF178 BC110 BC238 BY165 TV18 TBA120
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: Wegavision 767EL-1 - Wega, Württembergische Radio-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 560 x 410 x 350 mm / 22 x 16.1 x 13.8 inch
- Notes
-
VHF-UHF Tuner;
NF-Vorstufe mit IC TBA120 A.
- Mentioned in
- -- Original prospect or advert (Wega Katalog 1973)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
- Other Models
-
Here you find 669 models, 595 with images and 389 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
