Wegavision 772 electronic
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1969/1970
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 315516
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart

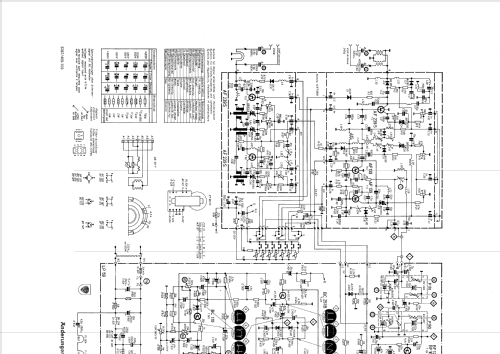

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 18
- Semiconductors
- AF239 AF239 AF239 AF139 AF139 BF167 BF198 BF173 BF199 BF178 BC171 BC170 BC251 BC147 BF178 BC110 BF198 BC170 BY127 or. BY133 TV18
- Main principle
- Superheterodyne (common); ZF/IF 38900/5500 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Wegavision 772 electronic - Wega, Württembergische Radio-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 670 x 470 x 390 mm / 26.4 x 18.5 x 15.4 inch
- Notes
-
Wegavision 772 electronic, 61cm s/w TV, CCIR B/G VHF-/UHF Tuner mit 7 Programmtasten, 23 Dioden, optionale Kabelfernbedienung Typ 793 nachrüstbar. Lautsprecher 21 x 9,5 cm.
Ausführungen:
- Holz, nussbaumfarben dunkel poliert, 648,-
- Holz, Nussbaum natur, DM 665,-
- Holz, Teak oder Palisander, DM 688,-
- Holz, Schleiflack weiss, DM 688,-
Siehe auch Nachfolger mit geändertem Kombi-Tuner (3 statt 5 Transistoren) 772 L
- Net weight (2.2 lb = 1 kg)
- 24.5 kg / 53 lb 15.4 oz (53.965 lb)
- Price in first year of sale
- 648.00 DM
- Mentioned in
- Handbuch VDRG 1969/1970
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
