• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 165906
    • alternative name: Bloch & Gerber

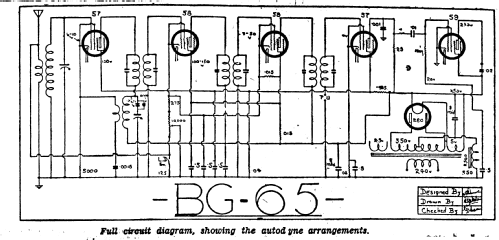

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s); Anode bend detection
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: BG65 - Weldon brand, Weldon Electric
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • This model was available in four different cabinet styles.
  • Price in first year of sale
  • 28.00 Aus£
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
