Classic Radiogram AM545
Weldon (brand), Weldon Electric Supply Co. and Bloch & Gerber Ltd.; Sydney, NSW
- Country
- Australia
- Manufacturer / Brand
- Weldon (brand), Weldon Electric Supply Co. and Bloch & Gerber Ltd.; Sydney, NSW
- Year
- 1946–1948 ??
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 356594
-
- alternative name: Bloch & Gerber
From own collection
From own collection
From own collection
The two needle tins are missing in photo.
Record player model label
From own collection
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 200 - 260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Classic Radiogram AM545 - Weldon brand, Weldon Electric
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 19 x 13.5 x 15.5 inch / 483 x 343 x 394 mm
- Notes
-

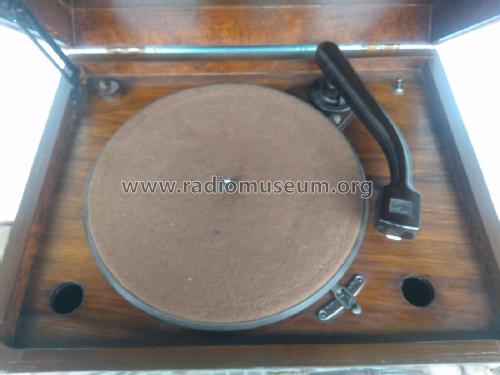

The Weldon AM545 Classic was a Table radiogram employing a Garrard 7C (78 rpm only) record player with an 11.5-inch turntable and used gramophone needles.
It was also available in a radio-only version.
- Mentioned in
- -- Collector info (Sammler) (From own collection)
- Author
- Model page created by Ronald Wesenberg. See "Data change" for further contributors.
