• Country
• United States of America (USA)

• Manufacturer / Brand
• Weller Tools (Cooper Tools); Easton, PA

• Year
• 1995 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 349378

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• TIC225

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

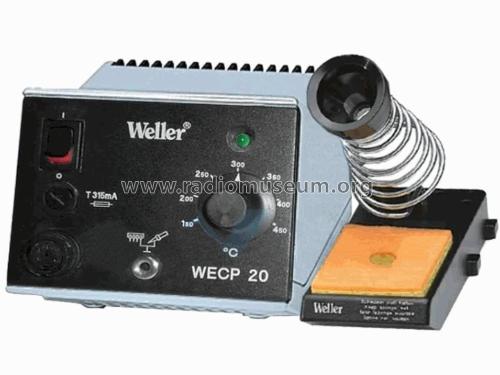

• Model: Soldering Station WECP-20 - Weller Tools Cooper Tools;

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 115 x 94 x 150 mm / 4.5 x 3.7 x 5.9 inch

• Notes

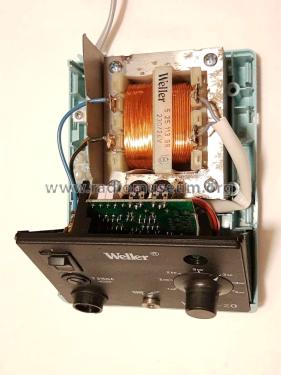

• Electronically controlled soldering station, with TRIAC (TIC 225M) in the output stage. Soldering iron Weller LR-21 (old blue, new black "antistatic"). Control principle: Temperature sensor built into the soldering iron. Temp. too low: continuous operation, LED lights up constantly ; Temp ok: pulse operation, LED flashes ; Temp. too high: TRIAC off, LED off. So similar to ERSA MS 60C / MC6000 / MS8000. Still without digital display. Successor e.g. WSD 161 with digital display, touch buttons and connections for 2 soldering irons, device otherwise identical in shape.

  3 ICs: 78L05 (voltage regulator), LM358 (operational amplifier 2-fold), SL443A (pulse generator, TRIAC control)

  1 TRIAC: TIC 225M ; 4 diodes 1N4004 ; 1 LED



• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Author
• Model page created by Boris Witke. See "Data change" for further contributors.
