- Country
- United States of America (USA)
- Manufacturer / Brand
- Wells-Gardner & Co.; Chicago
- Year
- 1931 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65379

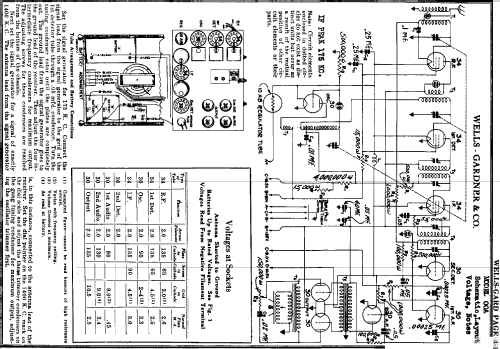

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Power type and voltage
- Storage and/or dry batteries
- from Radiomuseum.org
- Model: 00A - Wells-Gardner & Co.; Chicago
- Notes
- The model Wells-Gardner 00A has a push-pull output and a regulator tube (ballast tube) 10AB which we do not count in the tube count.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
