• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1958 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 194192

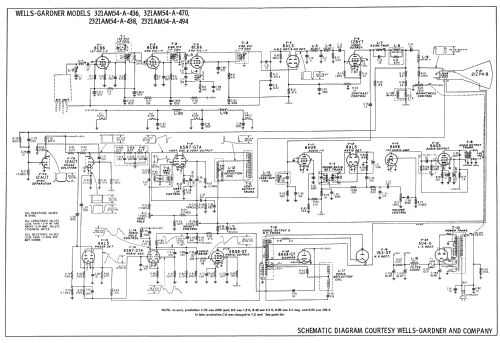

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6AF4A 6BZ7 6U8 6CB6 6CB6 6CB6 6AL5 12BY7 12AU7 6SN7GTA 6AU6 6AL5 6AV6 6AQ5 6AL5 6SN7GTA 6BQ6GT 6AX4GT 1B3GT 21ZP4B

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 2321AM54-A-438 - Wells-Gardner & Co.; Chicago

• Notes

• Wells-Gardner model 2321AM54-A-438  is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with a VHF-UHF tuner and picture tube 21ZP4B.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 5-58, Set 400, Servicer)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
