321AM50-A-432
Wells-Gardner & Co.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Wells-Gardner & Co.; Chicago
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 334338

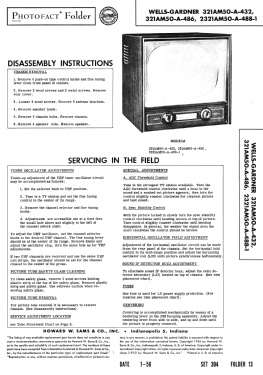

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6AF4 6BZ7 6U6 6CB6 6CB6 6CB6 6AL5 12AT7 12BY7 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6CS6 6SN7GTA 6AL5 6SN7GTA 6CU6 6AX4GT 1B3GT 5U4GA 21ZP4B
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 321AM50-A-432 - Wells-Gardner & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Wells-Gardner model 321AM50-A-432 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF- UHF tuner 25A1124 and picture tube 21ZP4B.
