321AM55-A-486-2
Wells-Gardner & Co.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Wells-Gardner & Co.; Chicago
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 331120
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6AF4 6BZ7 6U8 6CB6 6CB6 6CB6 6AL5 12AT7 12BY7 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6CS6 6SN7GTA 6AL5 6SN7GTA 6BQ6GA 6AX4GT 1B3GT 5U4GA 21AWP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 321AM55-A-486-2 - Wells-Gardner & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Wells-Gardner model 321AM55-A-486-2 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with UHF- VHF tuner 25A1128 and picture tube 21AWP4A.
- Literature/Schematics (1)

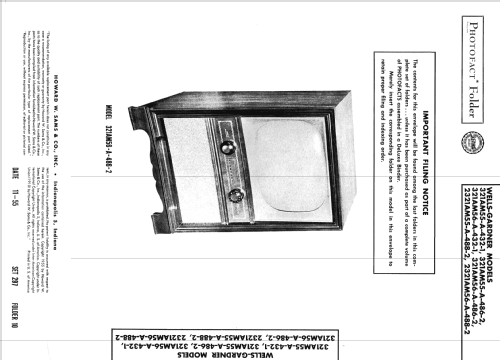

- Photofact Folder, Howard W. SAMS (Set 297 Folder 10 dated 11-55)
