321N62-A-612
Wells-Gardner & Co.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Wells-Gardner & Co.; Chicago
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 244913
Photofacts, Date 9-57, Set 369, Folder 19

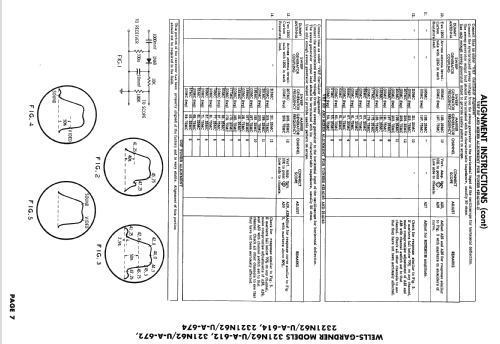

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 2BN4 5CG8 3CB6 3CB6 3CB6 12BY7A 5U8 3BN6 5AQ5 7AU7 12W6GT 6SN7GTB 12DQ6 or 12CU6 or 12BQ6GA 12AX4GT 1B3GT 21ATP4
- Main principle
- Superhet with RF-stage; ZF/IF 45750/41250 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 321N62-A-612 - Wells-Gardner & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Wells-Gardner model 321N62-A-612 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 25A1148-D and picture tube 21ATP4A.
- Mentioned in
- ROU: Corriente Alterna Nº 527
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 369 Folder 19 dated 9-57)
- Author
- Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
