• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1941 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65451

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1A7GT 1N5GT 1N5GT 1H5GT 3Q5GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

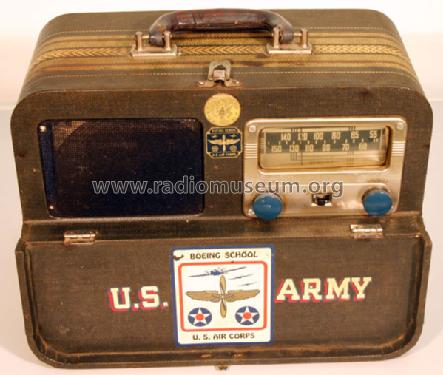

• Model: 6B10 - Wells-Gardner & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 340 x 240 x 183 mm / 13.4 x 9.4 x 7.2 inch

• Notes
• same as Wards Airline WG&C Series 6B10.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• - - Data from my own collection
