• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 322918

• Number of Tubes
• 8

• Valves / Tubes
• 6C5 6K7 6K7 6K7 6Q7 6F6 6G5 5Z4MG

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; Export model

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 or 210-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

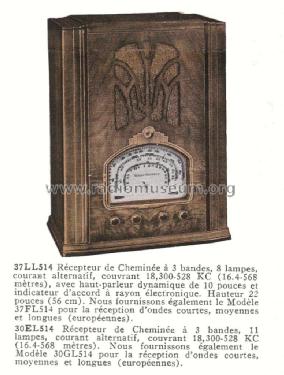

• Model: 7FL [Tombstone] - Wells-Gardner & Co.; Chicago

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 460 x 560 x 260 mm / 18.1 x 22 x 10.2 inch

• Notes

• Also see table model 7FL.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Mentioned in

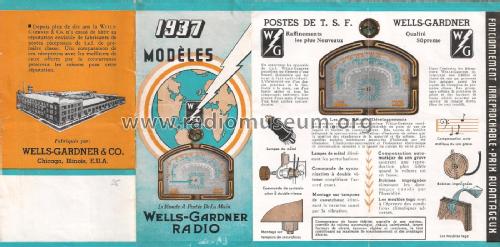

• - - Manufacturers Literature (Indicateur du cadran dit "à lumière fantôme")

• Author
• Model page created by Philippe Harang. See "Data change" for further contributors.
