- Country
- United States of America (USA)
- Manufacturer / Brand
- Wells-Gardner & Co.; Chicago
- Year
- 1942 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65505

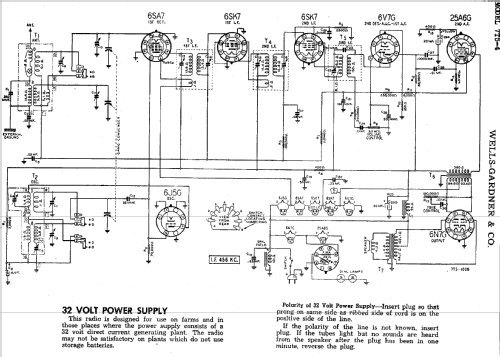

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 0.17 W (unknown quality)
- from Radiomuseum.org
- Model: 7T5-4 - Wells-Gardner & Co.; Chicago
- Notes
- 32V farm radio. Push button tuning. Push-Pull audio amplifier
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Other Models
-
Here you find 313 models, 102 with images and 284 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Wells-Gardner & Co.; Chicago
