- Country
- United States of America (USA)
- Manufacturer / Brand
- Wells-Gardner & Co.; Chicago
- Year
- 1941 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65516
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 9A46 - Wells-Gardner & Co.; Chicago
- Notes
- Built-in loop antenna. Push button tuning. Push-Pull audio amplifier.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Other Models
-
Here you find 313 models, 102 with images and 284 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Wells-Gardner & Co.; Chicago
Forum contributions about this model: Wells-Gardner & Co.;: 9A46
Threads: 1 | Posts: 8

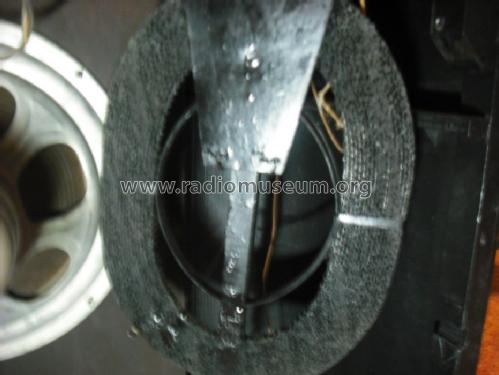

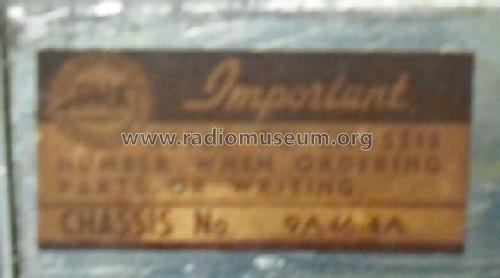

I recently acquired a console of this model. Specifically, the tag says 9A46-4A. It also has a logo on the front that says Windsor, with a shield device. I believe this may have been an in house brand for a department store chain. If anyone has any information on this radio, I would appreciate it. I would like to get it registered in its proper place. It's a beautiful, well playing radio. Thanks.
Charles Maulding, 26.Jan.13
