• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 278052

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7 6K7 76 6K7 6B7 6F6 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gulbransen CH=7G - Cromwell, Gulbransen NZ,

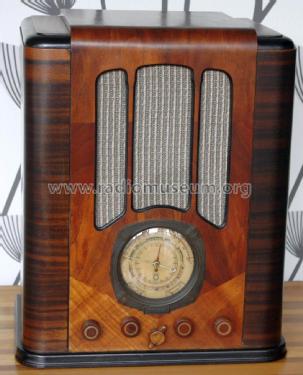

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 380 x 485 x 290 mm / 15 x 19.1 x 11.4 inch

• Notes

• 7-valve superhet with RF stage.

  An export version of the Wells-Gardner & Co; Chicago Model 7G modified to work on 230 VAC.

• Mentioned in
• -- Original prospect or advert (Horowhenua Chronicle 30 May 1936 Page 3)

• Literature/Schematics (2)

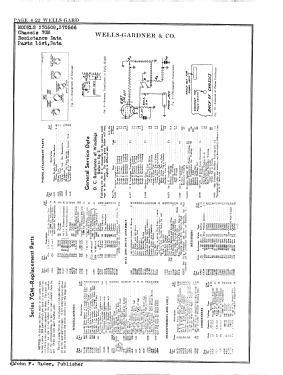

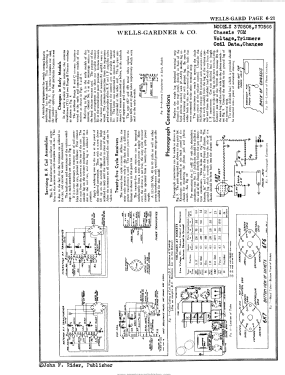

• Rider's Perpetual, Volume 7 = 1936 and before (Pages 6-20 to 6-23)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
