• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65565

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6K7 6K7 6C5 6K7 6G5 6K7 6C5 6C5 6F6 6F6 5Z4MG

• Main principle
• Superhet with RF-stage

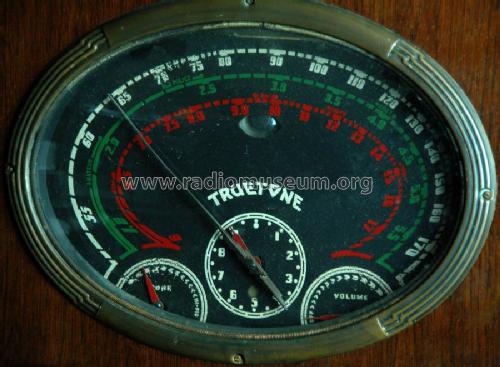

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: OEL - Wells-Gardner & Co.; Chicago

• External source of data
• Ernst Erb

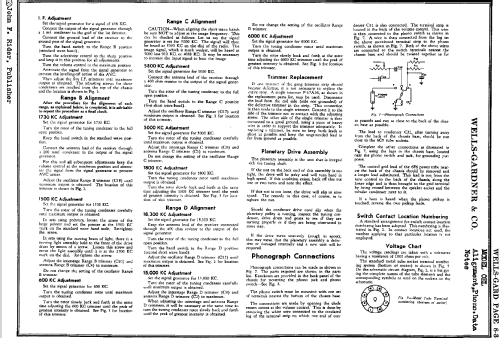

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Other Models

• Here you find 313 models, 102 with images and 284 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
