• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65389

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6D6 6D6 76 6D6 6D6 75 75 45 45 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• from Radiomuseum.org

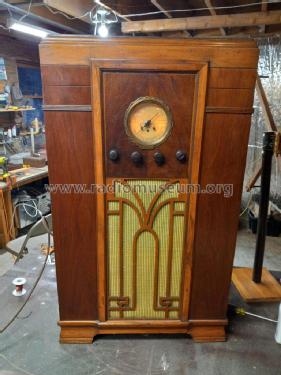

• Model: OC-Series 0C - Wells-Gardner & Co.; Chicago

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before
