Series 6F Ch= RF & AF
Wells-Gardner & Co.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Wells-Gardner & Co.; Chicago
- Year
- 1936 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65470

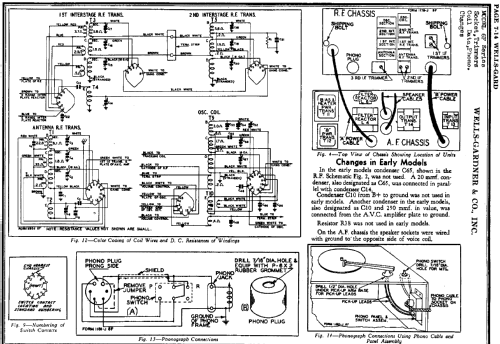

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Tuned circuits
- 9 AM circuit(s)
- Wave bands

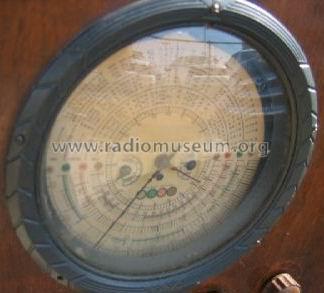

- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 12 inch = 30.5 cm
- Power out
- 30 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Series 6F Ch= RF & AF - Wells-Gardner & Co.; Chicago
- Shape
- Console with any shape - in general
- Notes
-

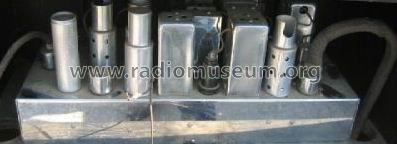

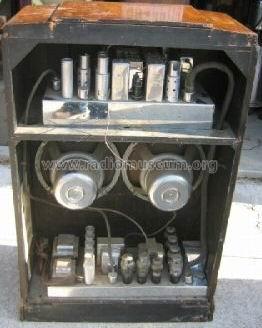

All-wave high-fidelity receiver (4 band) Unit has separate RF and AF chassis.
Similar with Airline 62-197 .
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Other Models
-
Here you find 313 models, 102 with images and 284 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Wells-Gardner & Co.; Chicago
