• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65535

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6A7 76 6D6 75 6U5 76 41 41 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Power out
• 3 W (4 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Arlington Series A22 Ch= A22-101 - Wells-Gardner & Co.; Chicago

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 28 x 43 x 16.25 inch / 711 x 1092 x 413 mm

• Notes

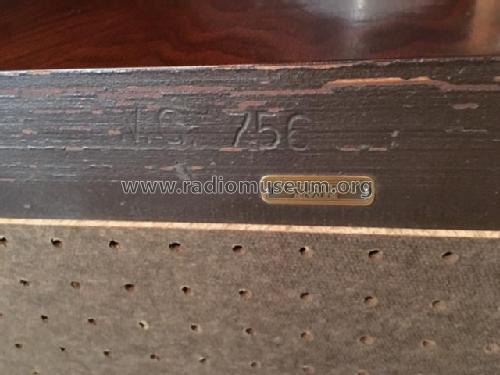

• Wells-Gardner Series A22 chassis in a console stamped "WG 756" and labeled "Arlington" beneath the dial.  This radio was marketed by Schuster's Department Store; Milwaukee, WI., U.S.A.

• Net weight (2.2 lb = 1 kg)
• 60 lb (60 lb 0 oz) / 27.240 kg

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Other Models

• Here you find 313 models, 102 with images and 284 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
