• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65546

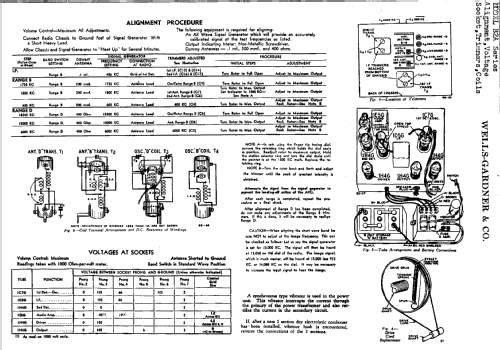

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 1C7G 1D5G 1H4G 1E5G 1H4G 1H4G 1H4G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Series B2A - Wells-Gardner & Co.; Chicago

• Notes
• Farm Radio. Sync.vibrator for +B.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before
