• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 268187

• Number of Tubes
• 13

• Valves / Tubes
• 42 42 76 76 42 80 80 6D6 6D6 6D6 6D6 76

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands

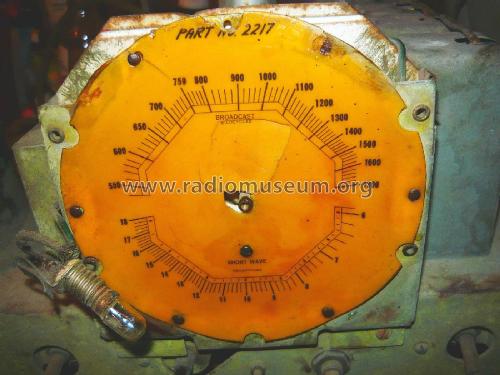

• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Unknown1 - Wells-Gardner & Co.; Chicago

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 580 x 790 x 410 mm / 22.8 x 31.1 x 16.1 inch

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Author
• Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
