4068 mit Grundig Konzertgerät 8040ST Stereo CS200MS
Weltfunk GmbH & Co. KG; Mainz
- Country
- Germany
- Manufacturer / Brand
- Weltfunk GmbH & Co. KG; Mainz
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 256873

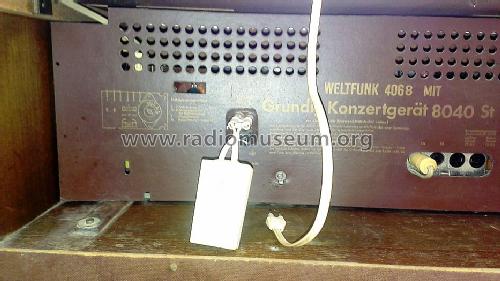

Picture from a sale.

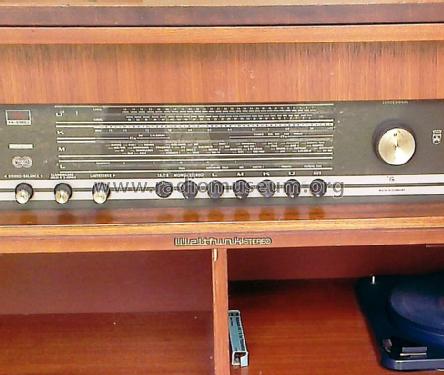

Picture from a sale.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4068 mit Grundig Konzertgerät 8040ST Stereo CS200MS - Weltfunk GmbH & Co. KG; Mainz
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1170 x 790 x 400 mm / 46.1 x 31.1 x 15.7 inch
- Notes
-
Beim Modell Weltfunk 4068 mit Grundig Konzertgerät 8040ST Stereo ist ein Stereo-Automatic-Decoder 6 nachrüstbar. Das Grundig-Chassis ist CS200MS. Der Plattenwechsler ist ein Modell Dual 1010 S.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 77 models, 59 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
