• Country
• Germany

• Manufacturer / Brand
• Weltfunk GmbH & Co. KG; Mainz

• Year
• 1979 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 210836

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

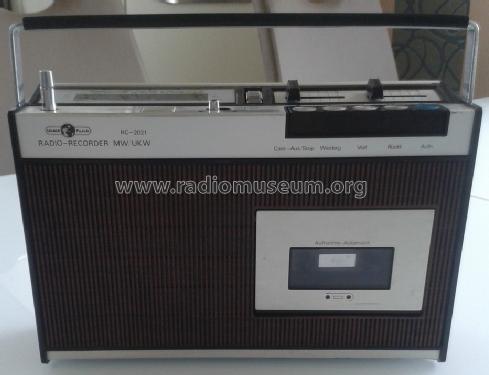

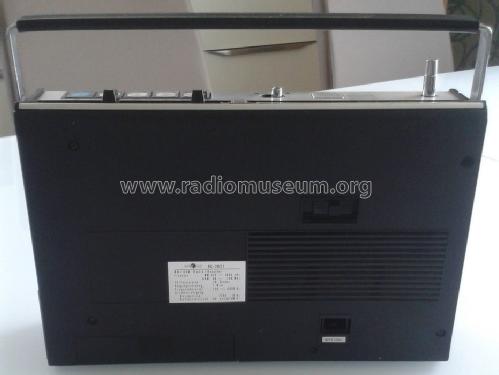

• Model: Mono Radio-Recorder CR-2021 - Weltfunk GmbH & Co. KG; Mainz

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Weltfunk CR-2021 MW/UKW Mono-Radiorekorder.

  Ähnlich mit Poppy CR-200 W

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
