• Country
• Germany

• Manufacturer / Brand
• Wenzl Hruby KG; Hamburg

• Year
• 1976

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 207342

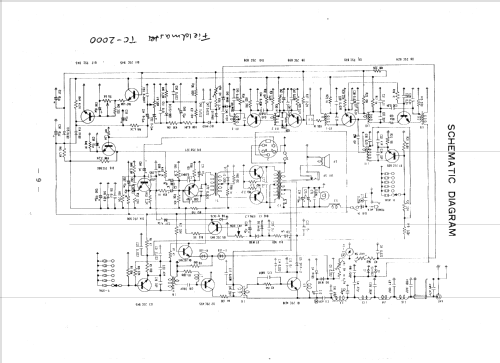

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Material
• Metal case

• from Radiomuseum.org

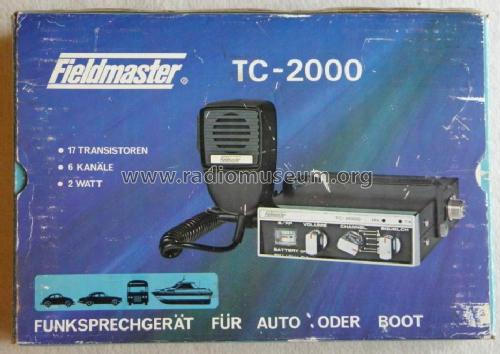

• Model: Fieldmaster - Sprechfunkgerät TC-2000 - Wenzl Hruby KG; Hamburg

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 120 x 38 x 150 mm / 4.7 x 1.5 x 5.9 inch

• Notes
• Fahrzeugfunkgerät für den 27 MHz-CB-Bereich.
  6 Kanäle, Steckquarze, Amplitudenmodulation.
  Sendeleistung 0,5 W.
  FTZ-Nr.: 27-253M/76

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Mentioned in
• Fieldmaster 6 Channel CB Transceiver TC-2000 Instruction Manual

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.
