W-17/C/24 D/00
Werner; Madrid
- Country
- Spain
- Manufacturer / Brand
- Werner; Madrid
- Year
- 1970 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 316149
Imagen del manual

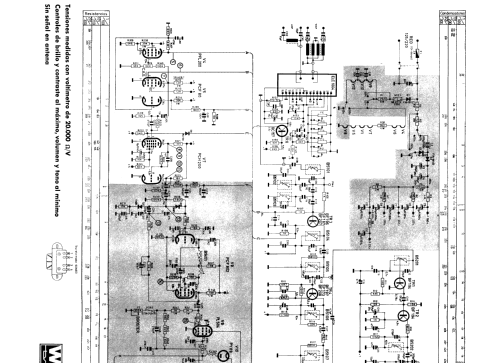

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Number of Transistors
- 13
- Semiconductors
- unknown_tr BF194 BF194 BF196 BF197 BF197 BF197 AA119 BA100 BY126 or. F16 OA90 OA95 TAA550 E125C500
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: W-17/C/24 D/00 - Werner; Madrid
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 707 x 473 x 225 mm / 27.8 x 18.6 x 8.9 inch
- Notes
-
Wener S.A.E. modelo W-17/C/24 D/00
TV 24" B/N con sintonizador transistorizado de VHF/UHF Copresa ELC1004 (unknown_tr son los 7 transistores del sintonizador)
2 Altavoces elípticos de 4" x 6" y 5" x 7"
