W-77/J/17J
Werner; Madrid
- Country
- Spain
- Manufacturer / Brand
- Werner; Madrid
- Year
- 1975 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 321422
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- unknown_CRT
- Number of Transistors
- 13
- Semiconductors
- BF199 BC147 BF336 BC147 BF336 BC147 BC147 BD131 BD132 BD128 BU205 BD131 BD131 TBA440 TBA750 SN76546 TAA550 BY127 TV20 1N4148
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

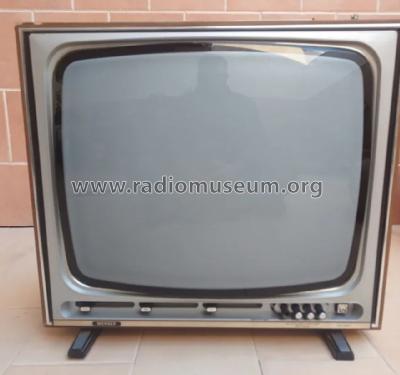

- Model: W-77/J/17J - Werner; Madrid
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Werner S.A.E. modelo W-77/J/17J
TV B/N 17" -Sintonizador VHF/UHF Copresa ELC2000S y cinco presintonias por pulsador.
