W 96/C/00 20" Luxe

• Country
• Spain

• Manufacturer / Brand
• Werner; Madrid

• Year
• 1968 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 301758

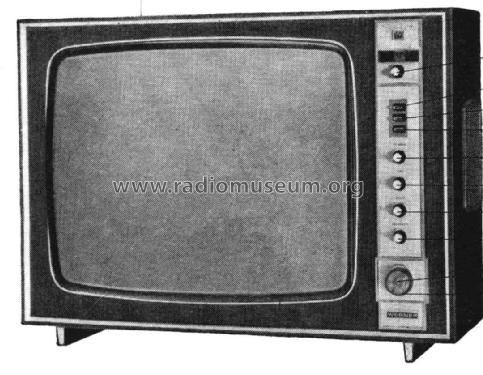

• Picture

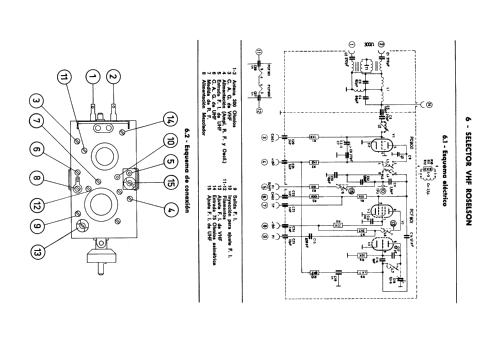

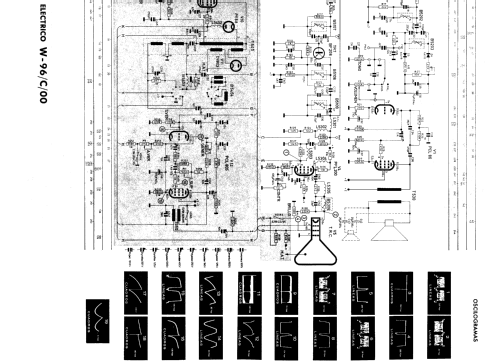

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• PCL86 PCF801 PC900 PFL200 PCF80 PCH200 PCF802 PL504 PY88 DY802 PCL805 A50-120W/S

• Number of Transistors
• 7

• Semiconductors
• AF239 AF239 BF194 BF194 BF207 BF208 BF208 AA119 BA100 OA90 OA95 E125C500

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: W 96/C/00 [20" Luxe] - Werner; Madrid

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 595 x 440 x 225 mm / 23.4 x 17.3 x 8.9 inch

• Notes

• TV B/N  con selector rotativo de VHF, sintonizador transistorizado de UHF y TRC de 20"

  Altavoz elíptico de 5" x 7"

  Véase variante 20" B (variaciones en la caja).

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
