• Country
• Italy

• Manufacturer / Brand
• West; Milano

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179220

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N412 2N140 2N140 2N408 2N408 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: DS301 - West; Milano

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 100 x 175 x 54 mm / 3.9 x 6.9 x 2.1 inch

• Notes
• Gamma onde medie: 540 ÷ 1600 kHz

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Literature/Schematics (1)

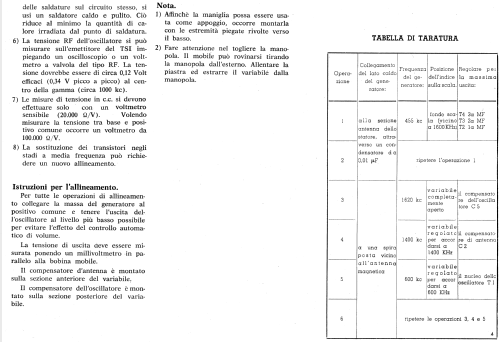

• -- Schematic (Schemario di Apparecchi a Transistori Vol. 3° R. Rosati)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
