• Country
• Italy

• Manufacturer / Brand
• West; Milano

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256878

• Number of Tubes
• 5

• Valves / Tubes
• 6AQ8 6AJ8 6DA6 6FG6 50BM8

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

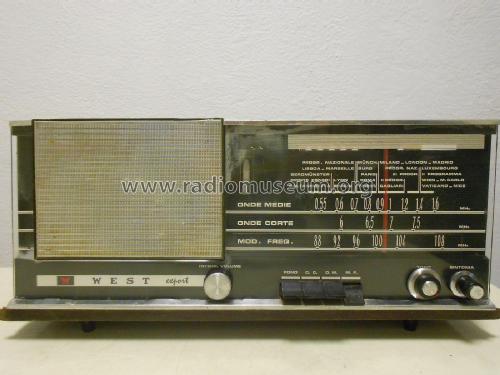

• Model: Export unknown - West; Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 240 x 390 mm / 20.9 x 9.4 x 15.4 inch

• Notes

• Numero modello sconosciuto, chi ne sa di più?

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 45 models, 24 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
