• Country
• Italy

• Manufacturer / Brand
• West; Milano

• Year
• 1967–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 220820

• Number of Tubes
• 5

• Valves / Tubes
• 6AQ8 6AJ8 6DA6 6HU6 6GW8

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif. Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

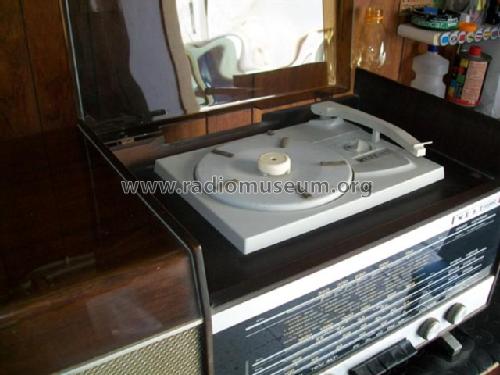

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

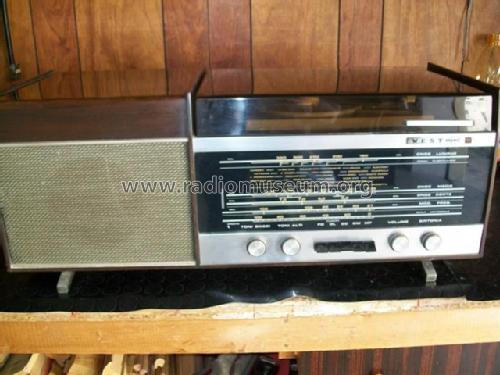

• Model: Export RD258 - West; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 720 x 285 x 300 mm / 28.3 x 11.2 x 11.8 inch

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 79,000.00 ITL

• Author
• Model page created by Daniele Bono. See "Data change" for further contributors.

• Other Models

• Here you find 45 models, 24 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from West; Milano
