- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply of California Co. (Western Air Patrol, Wizard); Los Angeles, CA
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65602

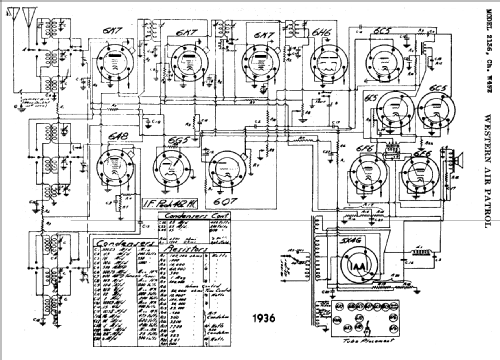

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superheterodyne (common); ZF/IF 462 kHz
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2136 Ch= W492 - Western Auto Supply of
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 25.625 x 42.375 x 13.5 inch / 651 x 1076 x 343 mm
- Notes
- Western Air Patrol was the brand of the Western Auto Company which was based in southern California, and is not the same as the truetone radios sold by the Western Auto company based in Kansas City, Missouri.
- Price in first year of sale
- 89.95 USD
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)
- Riders 12-14
- Other Models
-
Here you find 72 models, 26 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Western Auto Supply of California Co. (Western Air Patrol, Wizard); Los Angeles, CA
