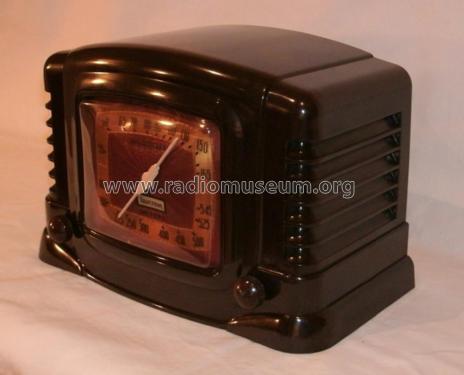

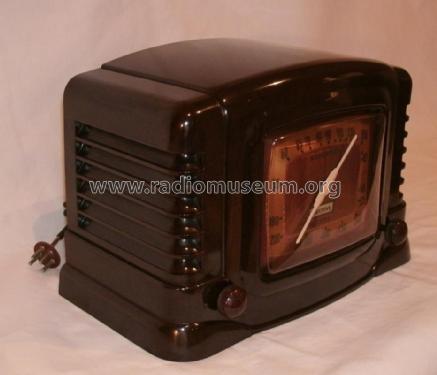

Truetone D2661
Western Auto Supply Co. (Truetone); Kansas City (MO)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65643

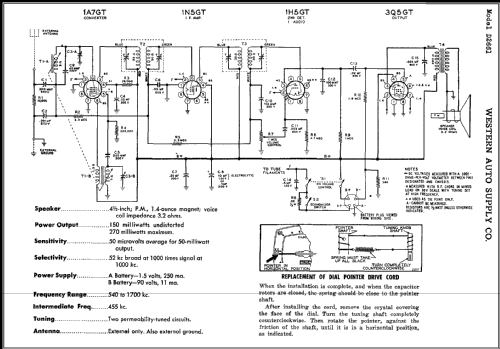

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 90 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
- Power out
- 0.15 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Truetone D2661 - Western Auto Supply Co.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10.5 x 7 x 5.75 inch / 267 x 178 x 146 mm
- Notes
- Photofact see under Trade name: Truetone.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Mentioned in
- Table Top Radios Vol. 1 Stein 98 (page 162.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 2, Folder 462-23)
