• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193110

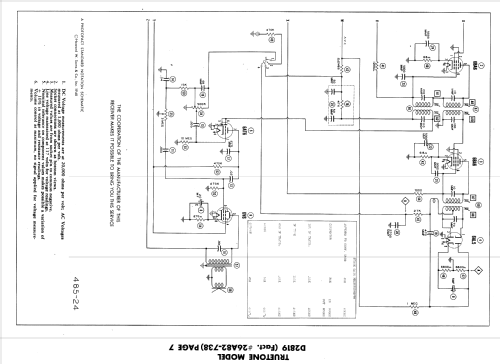

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BE6 6BA6 6BA6 6AL5 6AT6 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: D2819 Truetone Ch= 26A82-738 - Western Auto Supply Co.

• Shape
• Tablemodel, with any shape - general.

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 35, Date 3/48, Folder 485-24)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 900 models, 514 with images and 794 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Western Auto Supply Co. (Truetone); Kansas City (MO)
