- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1951 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65855

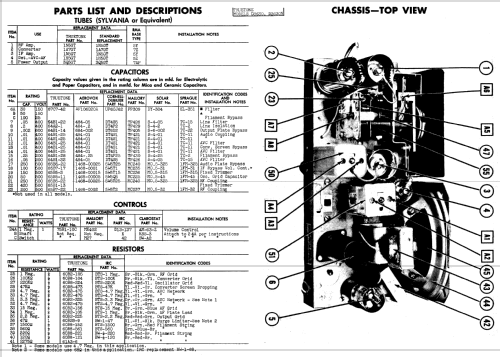

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 110-125 / 90 & 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

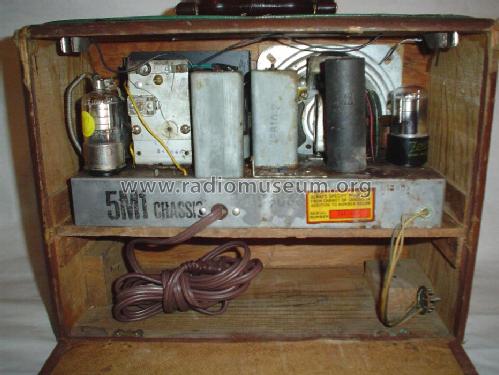

- Model: D3630N - Western Auto Supply Co.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 13.5 x 10.5 x 6.25 inch / 343 x 267 x 159 mm
- Notes
- Selenium Rectifier Branded True Tone
- Net weight (2.2 lb = 1 kg)
- 24 kg / 52 lb 13.8 oz (52.863 lb)
- External source of data
- Ernst Erb
- Source of data
- - - Data from my own collection
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
