• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65858

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1S5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 67.5 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.08 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Truetone D3809 - Western Auto Supply Co.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 7 x 4 inch / 254 x 178 x 102 mm

• Notes

• There are three models that are versions of the Tele-Tone 156. The schematics are very similar with many of same part numbers (the D3810 adds AC to DC circuitry). The plastic cases are physically identical with the only differences being (1) an engraved name change from "TELE-TONE" to "TRUETONE", (2) a color change to the D3810 case, and (3) knob color changes. Tele-Tone may have been the "private label" manufacturer to Western Auto for these Truetone models.

  Brand	Model	Power supply
  Tele-Tone	156	Battery
  Truetone	D3809	Battery
  Truetone	D3810	AC/DC or Battery

  Weight stated is without batteries; weight with "A" supply of 3 D cells in parallel and with "B" supply of 7 Li-ion 9V batteries in series is 5.4 lbs.

• Net weight (2.2 lb = 1 kg)
• 3.9 lb (3 lb 14.4 oz) / 1.771 kg

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (page 281)

• Literature/Schematics (4)

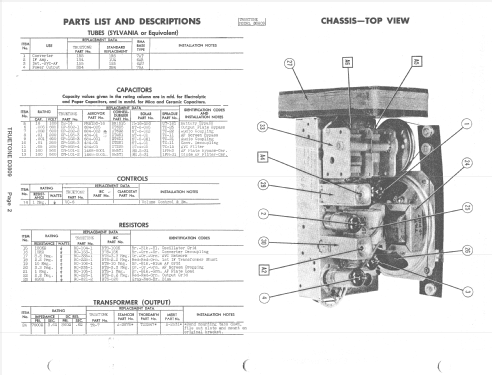

• Photofact Folder, Howard W. SAMS (Set 43, Date 8/48, Folder 4813-22)
