Truetone D723 4 tubes
Western Auto Supply Co. (Truetone); Kansas City (MO)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1941 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65930

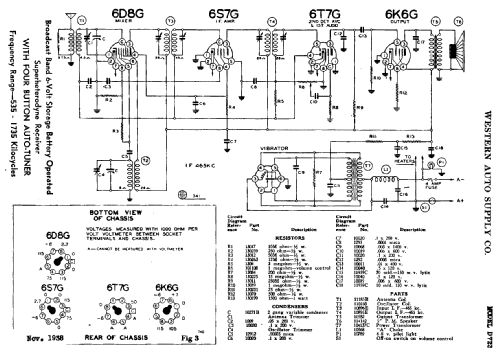

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Truetone D723 [4 tubes] - Western Auto Supply Co.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 20 x 11 x 9 inch / 508 x 279 x 229 mm
- Notes
- Farm radio. Sync. vibrator for +B.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Table Top Radios Vol. 1 Stein 98 (page 161.)
- Literature/Schematics (1)
- Riders 12-1, 2
- Other Models
-
Here you find 904 models, 519 with images and 797 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
