• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294650

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6K8G 6K7 6J5G 6Q7G 6J5G 6K6G 6K6G 6U5 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105-115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

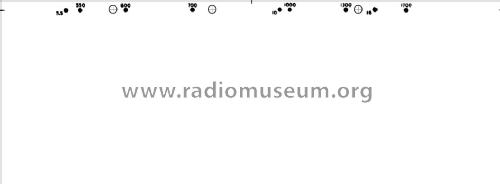

• Model: D921 Truetone [Console] - Western Auto Supply Co.

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 28 x 34 x 13 inch / 711 x 864 x 330 mm

• Literature/Schematics (1)
• Rider's Perpetual, Volume 12 = ca. 1941 and before (pages 12-8, 9 & 10)

• Author
• Model page created by Jay Kinnard. See "Data change" for further contributors.
