D935 Master Truetone Ch= 4A
Western Auto Supply Co. (Truetone); Kansas City (MO)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 218402
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1.5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

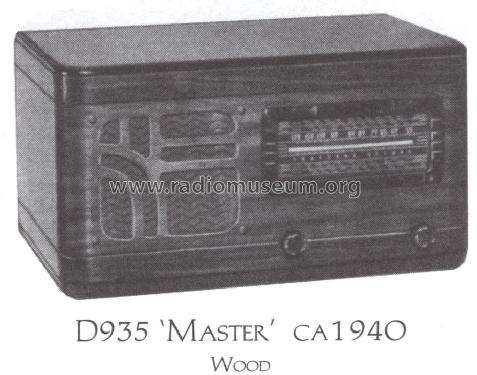

- Model: D935 Master Truetone Ch= 4A - Western Auto Supply Co.
- Shape
- Tablemodel, low profile (big size).
- Notes

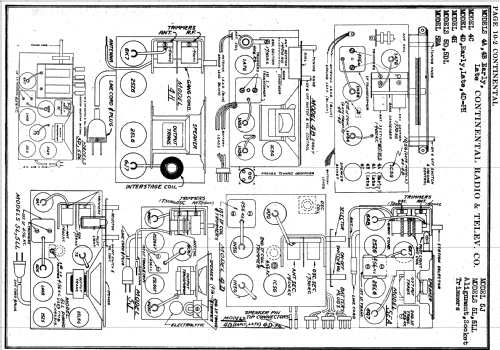

- This model uses a Continental Radio and Television chassis 4A, with schematic listed in Riders 10, page 10-1 as mentioned in the "Riders 1947 Master Index for Riders Manuals".
- Literature/Schematics (1)
- Rider's Perpetual, Volume 10 = 1939 and before (Continental Radio and Television 10-1)
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 305.)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
