D-708 Ch= 6P
Western Auto Supply Co. (Truetone); Kansas City (MO)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1937 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 208688

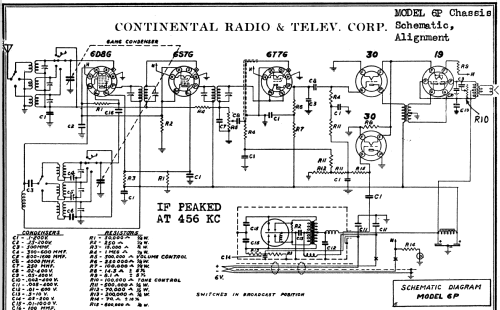

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: D-708 Ch= 6P - Western Auto Supply Co.
- Notes
- This model uses a Continental Radio and Television chassis 6P, with schematic listed in Riders 8, page 8-5 as mentioned in the "Riders 1947 Master Index for Riders Manuals".
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Riders 1947 Master Index for Riders Manuals
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
