• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208689

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

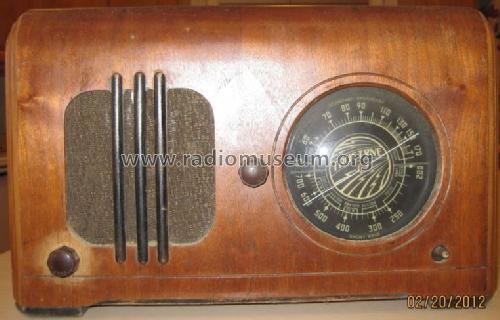

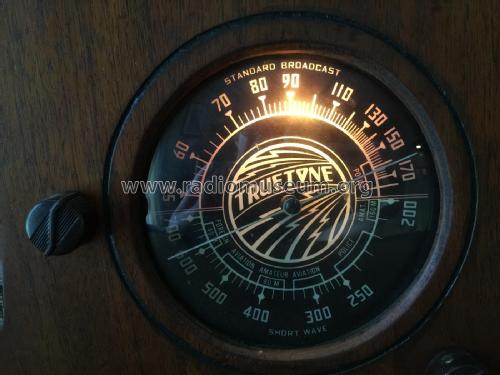

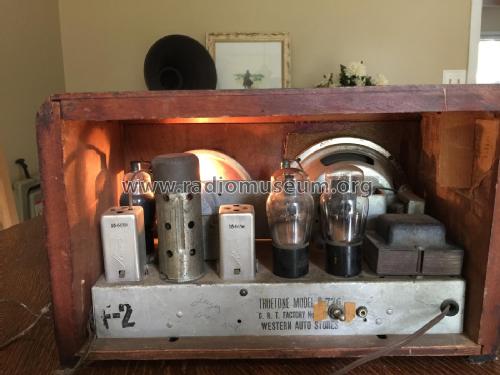

• Model: D-726 Ch= B1 - Western Auto Supply Co.

• Notes
• This model uses a Continental Radio and Television chassis B1, with schematic listed in Riders 11, page 11-1 as mentioned in the "Riders 1947 Master Index for Riders Manuals".

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Riders 1947 Master Index for Riders Manuals

• Author
• Model page created by John Kusching. See "Data change" for further contributors.

• Other Models

• Here you find 898 models, 512 with images and 791 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Western Auto Supply Co. (Truetone); Kansas City (MO)
