DC2988A Truetone
Western Auto Supply Co. (Truetone); Kansas City (MO)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72290
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: DC2988A Truetone - Western Auto Supply Co.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 19, 1959
- Literature/Schematics (1)

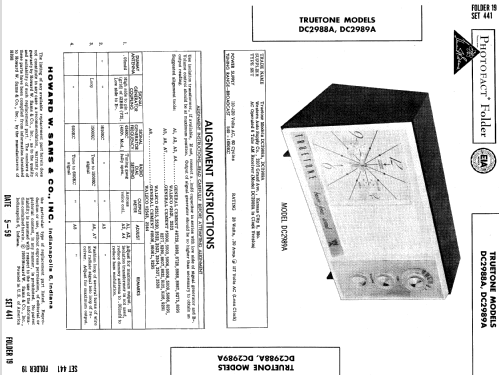

- Photofact Folder, Howard W. SAMS (Date 5-59, Set 441, Folder 19)
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
