• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1953

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 148644

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6AF4 6BK7

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / 6.3 AC & 280 DC Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: 3D6000 Truetone - Western Auto Supply Co.

• Shape
• Chassis only or for «building in»

• Notes
• The Western Auto Supply Model Truetone 3D6000 is a UHF Tuner for Truetone VHF Television Receiver.
  Tuning Range: TV - Channels 14 thru 83.

• Literature/Schematics (1)

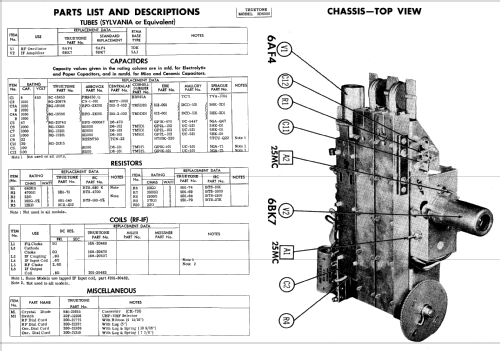

• Photofact Folder, Howard W. SAMS (Date 11-53, Set 221, Folder 12)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
